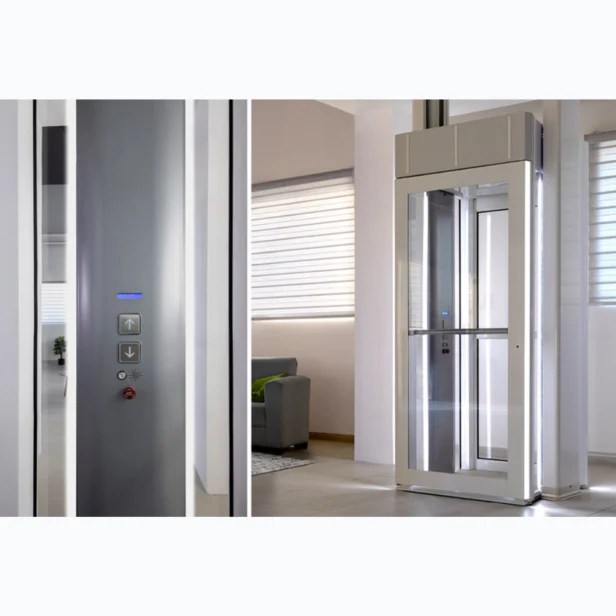

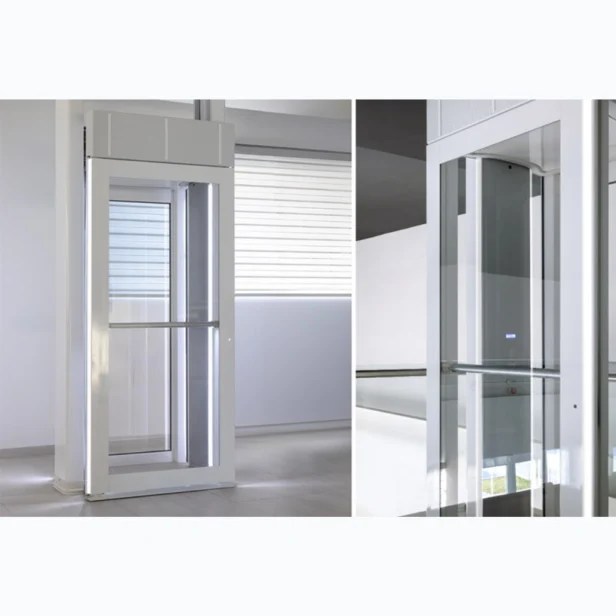

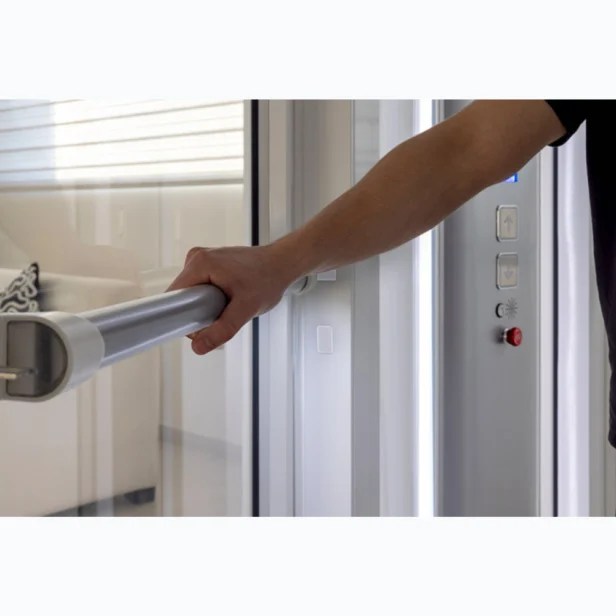

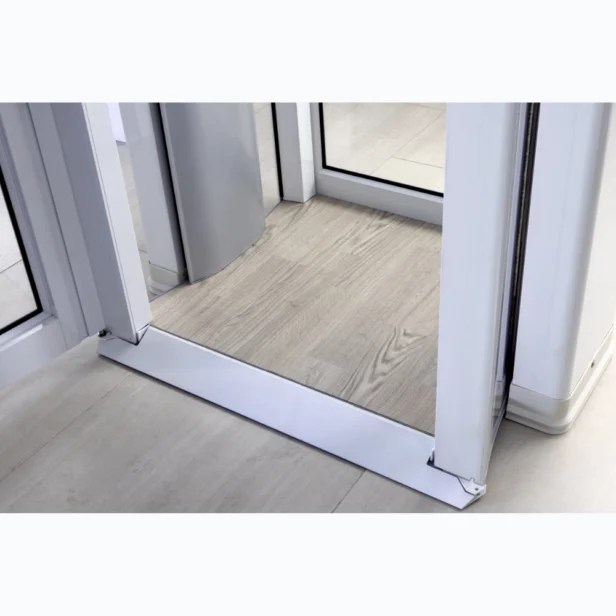

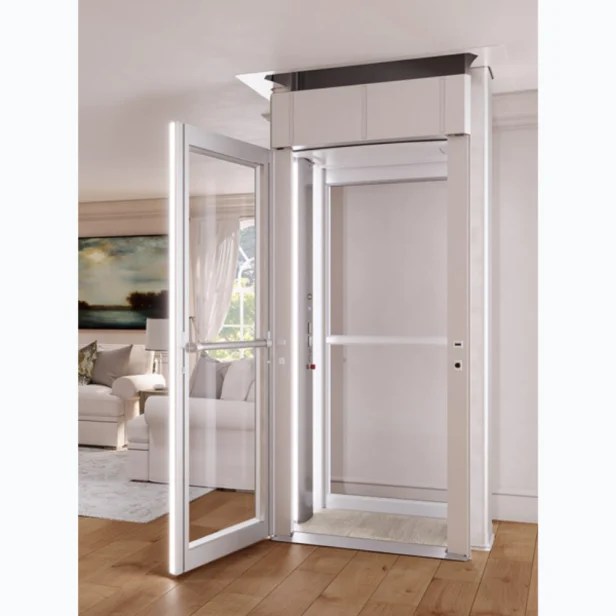

Savaria Luma Lift
The Savaria Luma Lift is a sleek, through-floor residential elevator designed to enhance mobility without compromising style. Perfect for homeowners looking to avoid the look or limitations of a stairlift, this two-stop elevator travels cleanly through a simple floor cut-out—no hoistway or shaft required. With its compact 38″ by 47″ footprint and self-supporting rail system, the Luma Lift offers flexible installation without the need for a load-bearing wall.
Product Detail
- Sleek, Through-Floor Design: Travels vertically between two levels without the need for a shaft, pit, or hoistway
- Compact Footprint: Space-saving 38″ x 47″ footprint fits discreetly into nearly any home layout
- Self-Supporting Rail System: Innovative rail design allows flexible placement without requiring a load-bearing wall
- Hidden Drive Rope System: Clean, modern aesthetic with no exposed cables or unsightly hardware
- Smooth, Quiet Operation: Engineered for a seamless, comfortable ride with minimal disruption to your home environment
- Warranty: 3 years on parts
| Weight capacity | 400 lbs (181 kg) |
|---|---|
| Cabin size | 29.1″W x 27.8″L* x 78.7″H (739 mm x 706 mm x 2000 mm) |
| Floor cut-out | 46.7″W x 37.6″L (956 mm x 1186 mm) |
| Maximum travel | 13.7′ (414 cm), 2 stops |
| Nominal speed | 15 ft/min (0.08 m/s) |

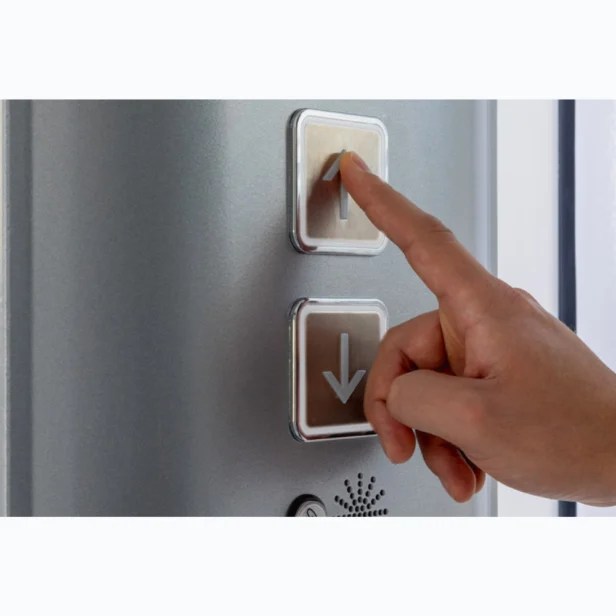

| Drive system | Winding drum, operated with constant pressure buttons |
| Power supply | 110 – 240 VAC, 5 A (max), 50/60 Hz, single phase |
- Single-door option
- Two-door option: Cab length is 25.6″ (651 mm)
Frequently Asked Questions
Home elevators provide convenient access to multiple floors, increase home value, and enhance safety for individuals with mobility challenges.
Installation time varies, but most home elevators can be installed in a few weeks, including the necessary construction work.
Yes, our home elevators come with multiple safety features, including emergency brakes and battery backups.
We offer through-the floor elevators that do not require a lot of room in your home. Through-the-floor elevators have a compact footprint and do not require an equipment room, and there is no need for a pit/well on the first floor.
